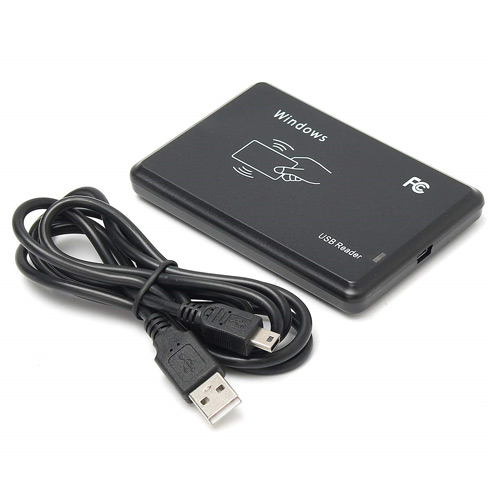

JT308 125KHz USB Proximity Smart RFID Card Reader

Buy JT308 125KHz Proximity RFID Card Reader Price in Bangladesh

The JT308 125KHz USB Proximity Sensor Smart RFID ID Card Reader is a compact and user-friendly device designed for reading RFID tags and cards. It operates on the 125Khz frequency and is capable of reading μEM4001, 4100, or compatible RFID/ID cards. The reader can read the first 10 digits of the card, which makes it suitable for various applications, such as access control, time attendance, and inventory management. The JT308 reader is a standard HID device, which means that it does not require any driver installation. The code can be read into any input editor, such as Notepad, WORD, or other text-editing software. The reader has a USB interface that enables it to communicate with a computer or other devices. It is compatible with various operating systems, including Windows 95/98/2000/XP. The reader has a reading distance of between 5-8cm, which makes it suitable for reading cards without the need for direct contact. It has a communication speed of 106Kbit/s, which allows for fast and efficient data transfer. The reader is powered by a DC 5V power supply, which can be obtained via a USB cable or an external power supply. The JT308 RFID reader has a compact and durable design.

This RFID card reader can read RFID card serial number and output to your computer according to the specified format, then management software derives many more functions like matching the Serial with an Employee ID, Name, Etc. It is a secure way to protect the Employee Details/ Company Details even the card is lost as the data available only in Company Local Database.It reads the ID number from the EM 4100 card or a compatible card. After detecting the card, the card number is sent directly via the USB interface, just like the entry number from the USB keyboard. JT308 RFID Reader is a standard HID devices, means you don't need to install any driver, the code can be read into any input editor. The JT308 series RFID card reader is a simple, fast read card. Belong to standard HID devices do not need to install the driver, can be read in any number, this function is suitable for extended functionality in existing software, without any modification to the original software.

Principle of Work:

The JT308 Smart 125KHz USB Proximity RFID Card Reader works by using radio frequency technology to read the information stored on RFID tags or ID cards. The reader emits a low-level electromagnetic field that powers the RFID tag or card and communicates with it wirelessly to retrieve the information stored on it. When a user places an RFID tag or ID card near the reader, the electromagnetic field emitted by the reader powers the tag or card. The tag or card then responds to the reader's signal by transmitting the information stored on it back to the reader. The reader receives this information and decodes it, making it available for further processing by a computer or other device. JT308 RFID reader has a reading distance of between 5-8cm, which means that it can read RFID tags or ID cards without the need for direct contact. The reader has a USB interface that enables it to communicate with a computer or other devices, making it easy to integrate into various applications.

Installation Instructions:

• 1st Step: Connect the USB cable with the card reader to the computer USB port.
• 2nd Step: The reader will ‘drip’ sound and flash about that power successfully, and then half a second after the ‘drip’ sound and flash about that device self-test successfully, without Install any drivers, windows will automatically recognize it.
• 3rd Step: Open one EXCEL or WORLD, the card number would be input by self.

How to Use:

•  Connect the USB cable with the card reader to the computer USB port.
• The reader will ‘drip’ sound and flash about that power successfully, and then half a second after the ‘drip’ sound and flash about that device self-test successfully, without Install any drivers, windows will automatically recognize it.
• Open one EXCEL or WORLD, the card number would be input by self.

Applications:

• Access control: The reader can be used to control access to secure areas or facilities by reading RFID tags or ID cards.
• Time Attendance: The reader can be used to track employee attendance by reading RFID tags or ID cards when employees enter or exit the workplace.
• Inventory Management: The reader can be used to track and manage inventory by reading RFID tags on products or items.
• Asset Tracking: The reader can be used to track assets, such as equipment or vehicles, by reading RFID tags attached to them.
• Library Management: The reader can be used in libraries to track and manage books and other materials by reading RFID tags attached to them.
• Parking Management: The reader can be used in parking garages or lots to control access and track vehicles by reading RFID tags attached to them.
• Payment Systems: The reader can be used in payment systems, such as vending machines or kiosks, by reading RFID tags or ID cards to process payments.

Package Includes:

• 1 x USB interface RFID card reader.
• 1 x mini USB cable.
